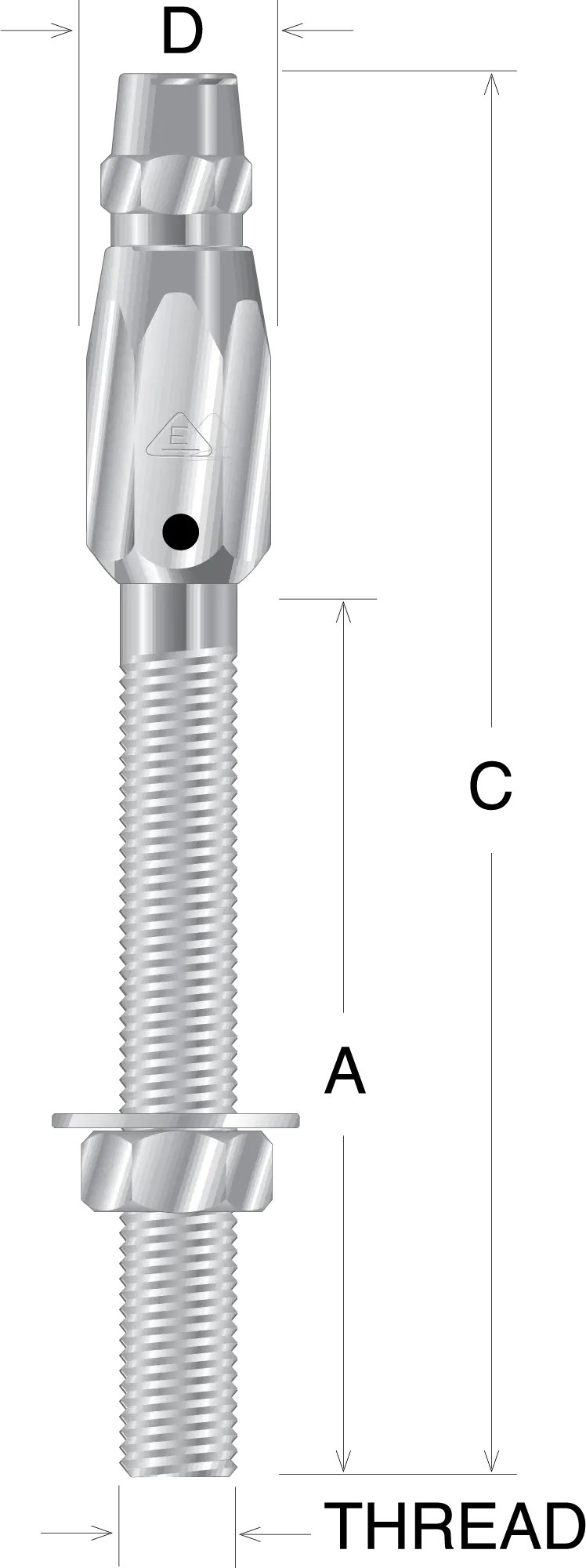

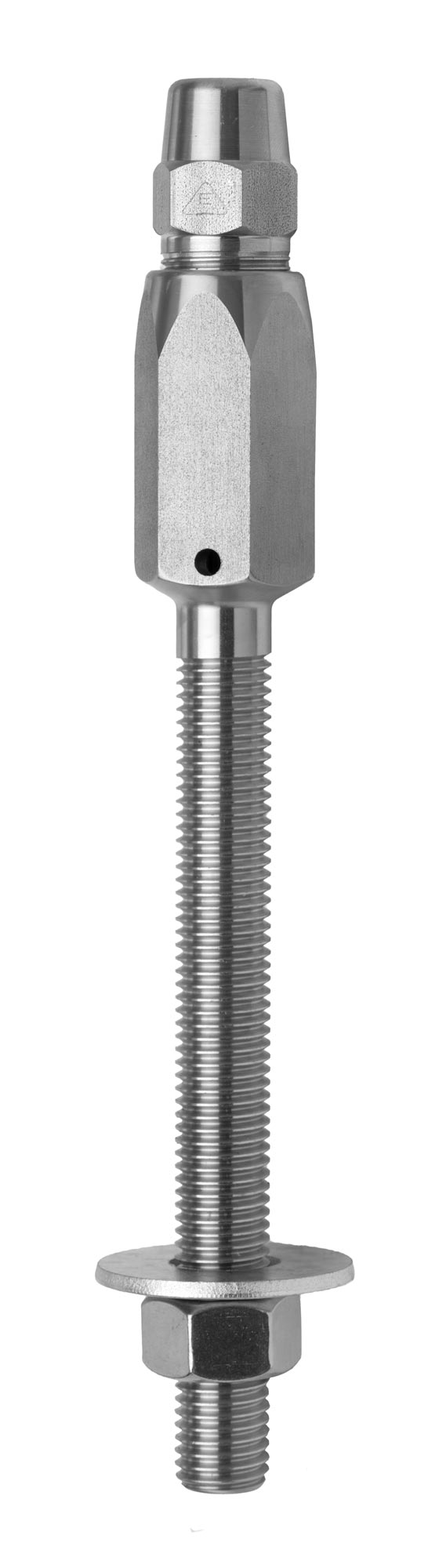

Coarse Thread Stud Socket Fitting

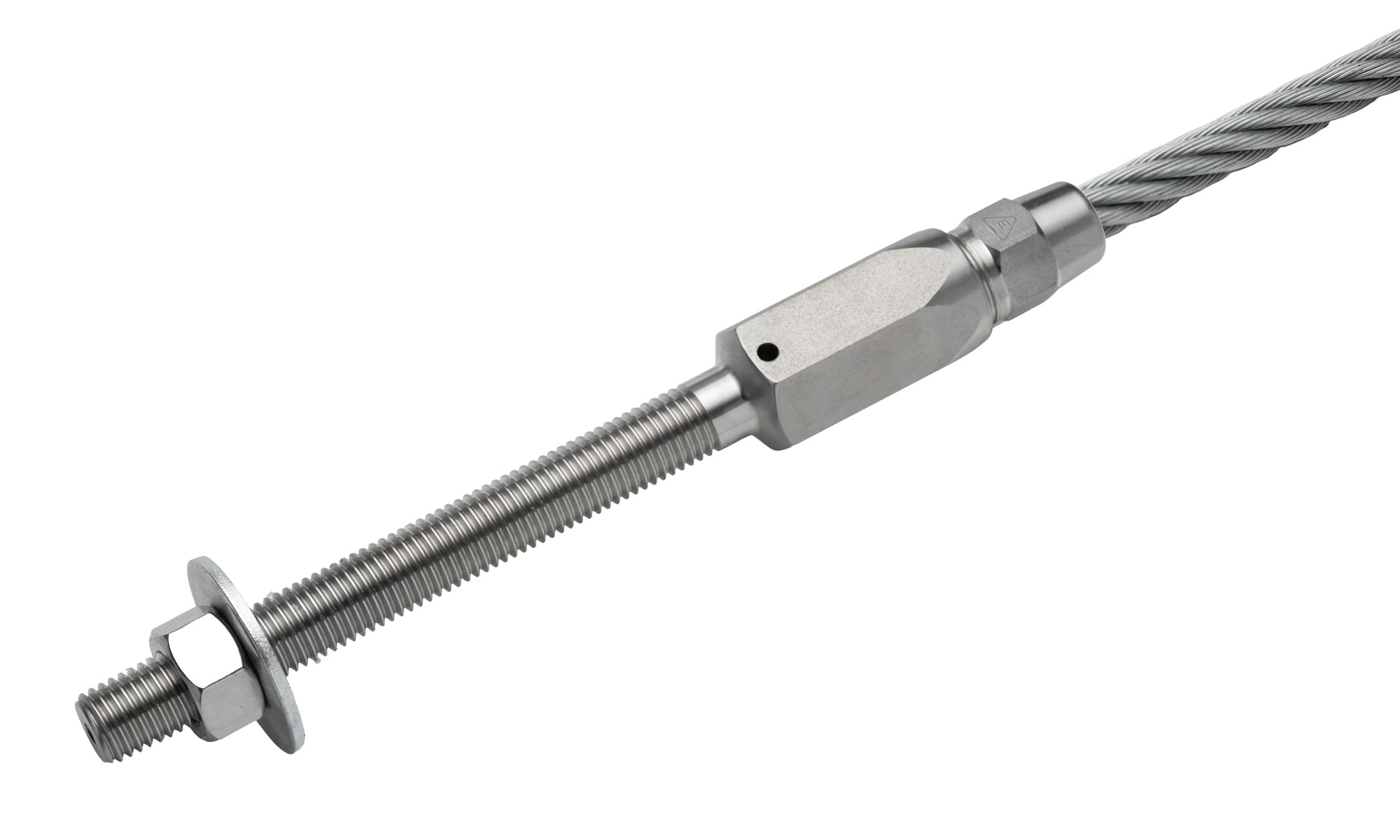

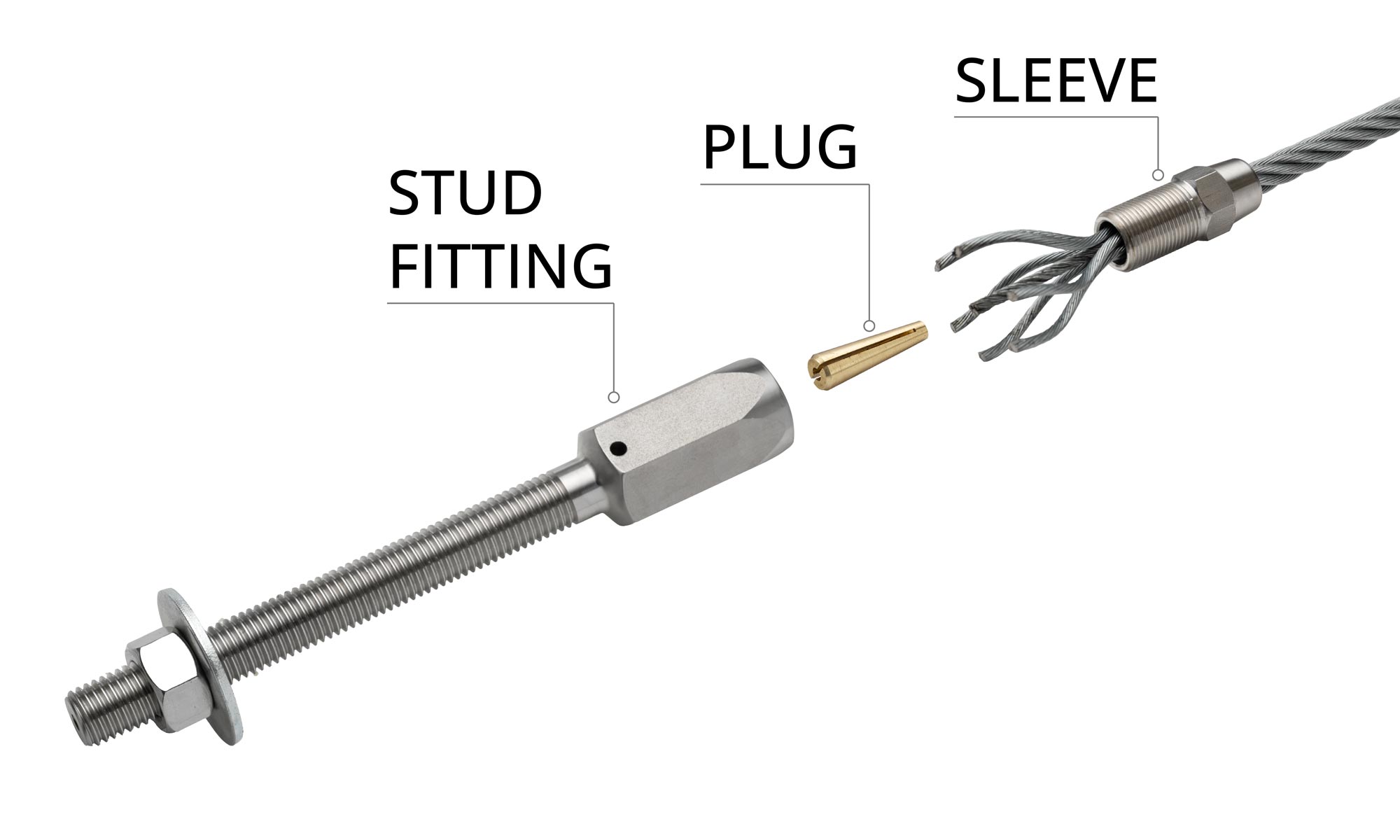

Electroline’s stud socket fittings are used for a variety of lifting, rigging, and securement applications. The swageless rope termination and threaded rod allow a rope to be quickly attached (without special tools or processes) and tensioned using the included washer and nut. Longer and wider sizes are also available.

Available for rope sizes from 1/8 to 1 inch in diameter.
Fitting strength exceeds the rated breaking strength of most ropes.
Material options include self-colored steel, zinc-plated or galvanized steel for corrosion resistance, or stainless steel for a more attractive appearance.

Specifications

Termination Type	Swageless
Connector Type	Stud

Select from 4 key specifications to identify the matching product, or browse the complete list in the table below.

Rope Size

EIPS Breaking Strength

Thread

Material

Sizes & Specifications

This table is updated based on the options selected above. Or, select a product directly from the table.

Part Number	Rope Size	EIPS Breaking Strength	Thread	Material	Dimensions

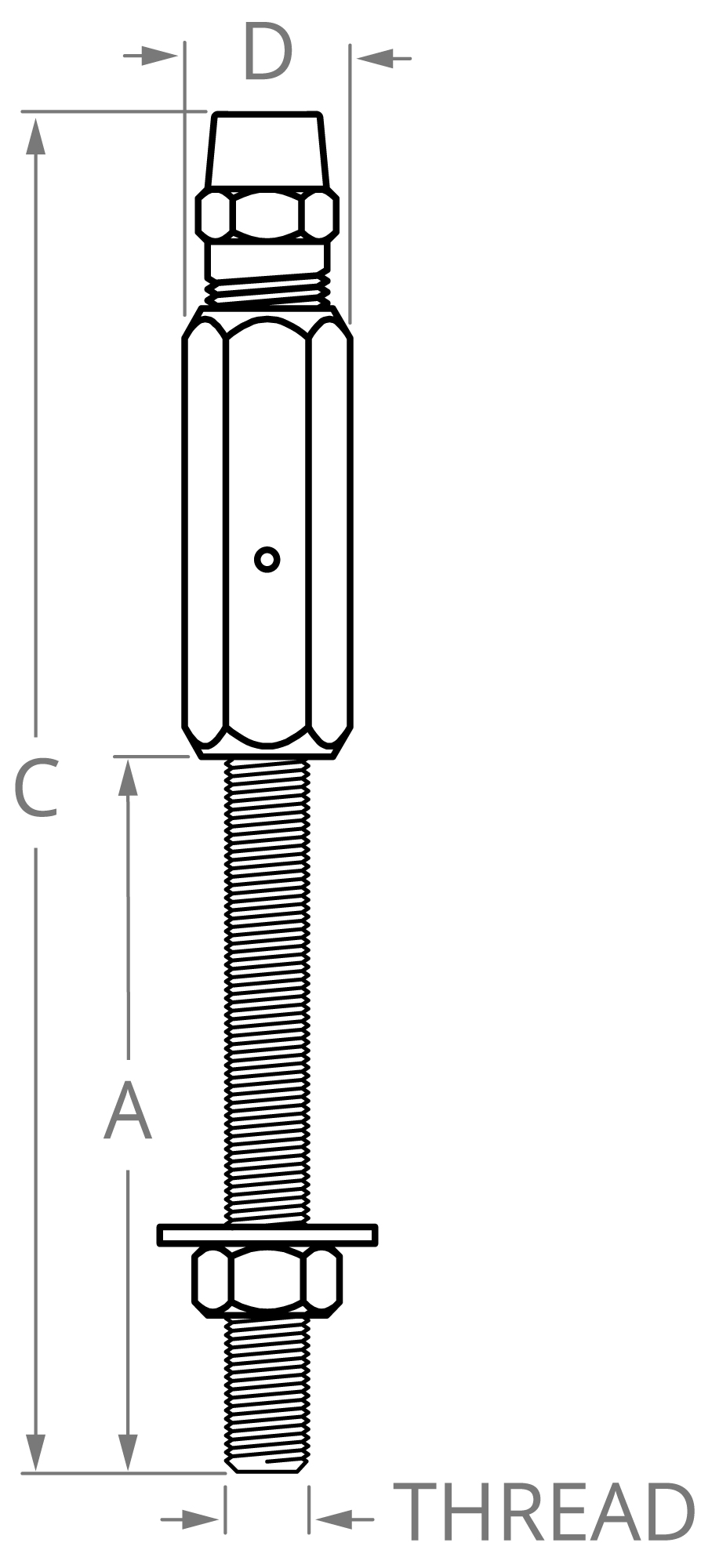

Part Number	Rope Size	EIPS Breaking Strength	Thread	Material	A	C	D
GD-387-N	7/8"	79,800	1-1/4-7	Self-Colored Steel	9	17-3/16	2-5/8
GD-325-X	1/4"	6,800	1/2-13	Galvanized Steel	5-1/4	8	1
GD-331-X	5/16"	10,540	1/2-13	Galvanized Steel	5-1/4	8	1
GD-337-X	3/8"	15,100	5/8-11	Galvanized Steel	4-1/2	8-1/4	1-1/8
GD-343-X	7/16"	20,400	3/4-10	Galvanized Steel	6-3/8	10-15/16	1-1/2
GD-350-X	1/2"	26,600	3/4-10	Galvanized Steel	6-3/8	10-15/16	1-1/2
GD-356-X	9/16"	33,600	7/8-9	Galvanized Steel	7-1/2	13-7/8	1-3/4
GD-362-X	5/8"	41,200	7/8-9	Galvanized Steel	7-1/2	13-7/8	1-3/4
GD-375-X	3/4"	58,800	1-1/8-7	Galvanized Steel	8-5/8	16-1/8	2-3/16
GD-387-X	7/8"	79,800	1-1/4-7	Galvanized Steel	9	17-3/16	2-5/8
GD-399-X	1"	103,400	1-1/2-6	Galvanized Steel	12-1/8	22-5/16	3
IGS-312	1/8"	1,700	1/4-20	Stainless Steel	2-1/2	4-1/8	5/8
IGS-318	3/16"	3,700	3/8-16	Stainless Steel	4-1/8	6-5/16	3/4
IGS-325	1/4"	6,800	1/2-13	Stainless Steel	5-1/4	8	1
IGS-331	5/16"	10,540	1/2-13	Stainless Steel	5-1/4	8	1
IGS-337	3/8"	15,100	5/8-11	Stainless Steel	4-1/2	8-1/4	1-1/8
IGS-343	7/16"	20,400	3/4-10	Stainless Steel	6-3/8	10-15/16	1-1/2
IGS-350	1/2"	26,600	3/4-10	Stainless Steel	6-3/8	10-15/16	1-1/2
GD-325-N	1/4"	6,800	1/2-13	Self-Colored Steel	5-1/4	8	1
GD-325-V	1/4"	6,800	1/2-13	Zinc Plated Steel	5-1/4	8	1
GD-331-N	5/16"	10,540	1/2-13	Self-Colored Steel	5-1/4	8	1
GD-331-V	5/16"	10,540	1/2-13	Zinc Plated Steel	5-1/4	8	1
GD-337-N	3/8"	15,100	5/8-11	Self-Colored Steel	4-1/2	8-1/4	1-1/8
GD-337-V	3/8"	15,100	5/8-11	Zinc Plated Steel	4-1/2	8-1/4	1-1/8
GD-343-N	7/16"	20,400	3/4-10	Self-Colored Steel	6-3/8	10-15/16	1-1/2
GD-343-V	7/16"	20,400	3/4-10	Zinc Plated Steel	6-3/8	10-15/16	1-1/2
GD-350-N	1/2"	26,600	3/4-10	Self-Colored Steel	6-3/8	10-15/16	1-1/2
GD-350-V	1/2"	26,600	3/4-10	Zinc Plated Steel	6-3/8	10-15/16	1-1/2
GD-356-N	9/16"	33,600	7/8-9	Self-Colored Steel	7-1/2	13-7/8	1-3/4
GD-362-N	5/8"	41,200	7/8-9	Self-Colored Steel	7-1/2	13-7/8	2-3/16
GD-375-N	3/4"	58,800	1-1/8-7	Self-Colored Steel	8-5/8	16-1/8	2-3/16
GD-399-N	1"	103,400	1-1/2-6	Self-Colored Steel	12-1/8	22-5/16	3
IGD-312-N	1/8"	1,700	1/4-20	Self-Colored Steel	2-1/2	4-1/8	5/8
IGD-312-V	1/8"	1,700	1/4-20	Zinc Plated Steel	2-1/2	4-1/8	5/8
IGD-318-N	3/16"	3,700	3/8-16	Self-Colored Steel	4-1/8	6-5/16	3/4
IGD-318-V	3/16"	3,700	3/8-16	Zinc Plated Steel	4-1/8	6-5/16	3/4

Download Product Sheet (PDF)

Related Products

Fine Thread Stud Socket Fitting

Rope Size	1/16 to 1/2"
EIPS Breaking Strength	480 to 26,600 lbs
Material	Self-Colored Steel, Stainless Steel or Zinc Plated Steel

Coarse Thread Stud Socket Fitting (Longer/Wider)

Rope Size	9/16 to 1-1/2"
EIPS Breaking Strength	33,600 to 228,000 lbs
Material	Galvanized Steel or Stainless Steel

Coarse Thread Stud Socket Fitting
